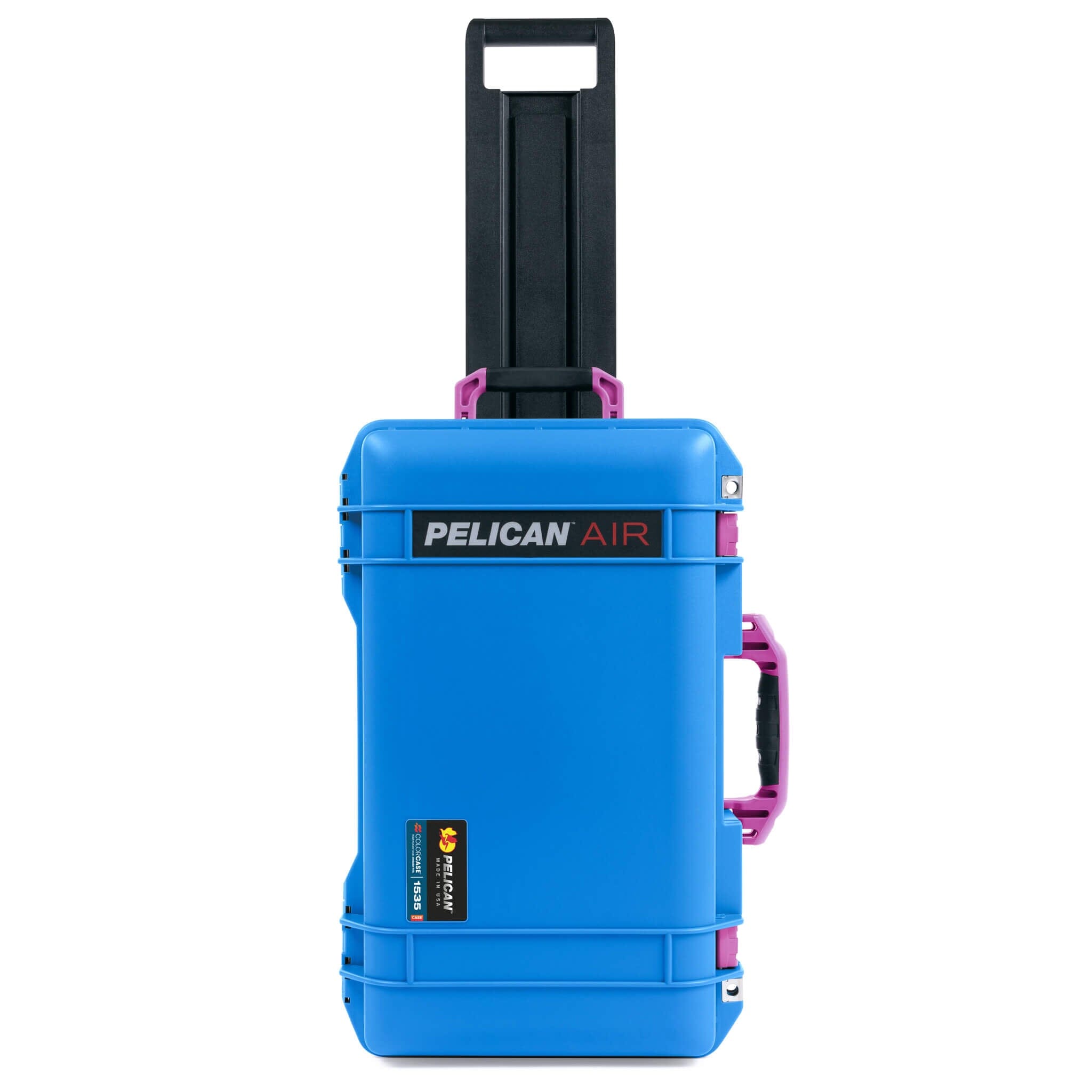

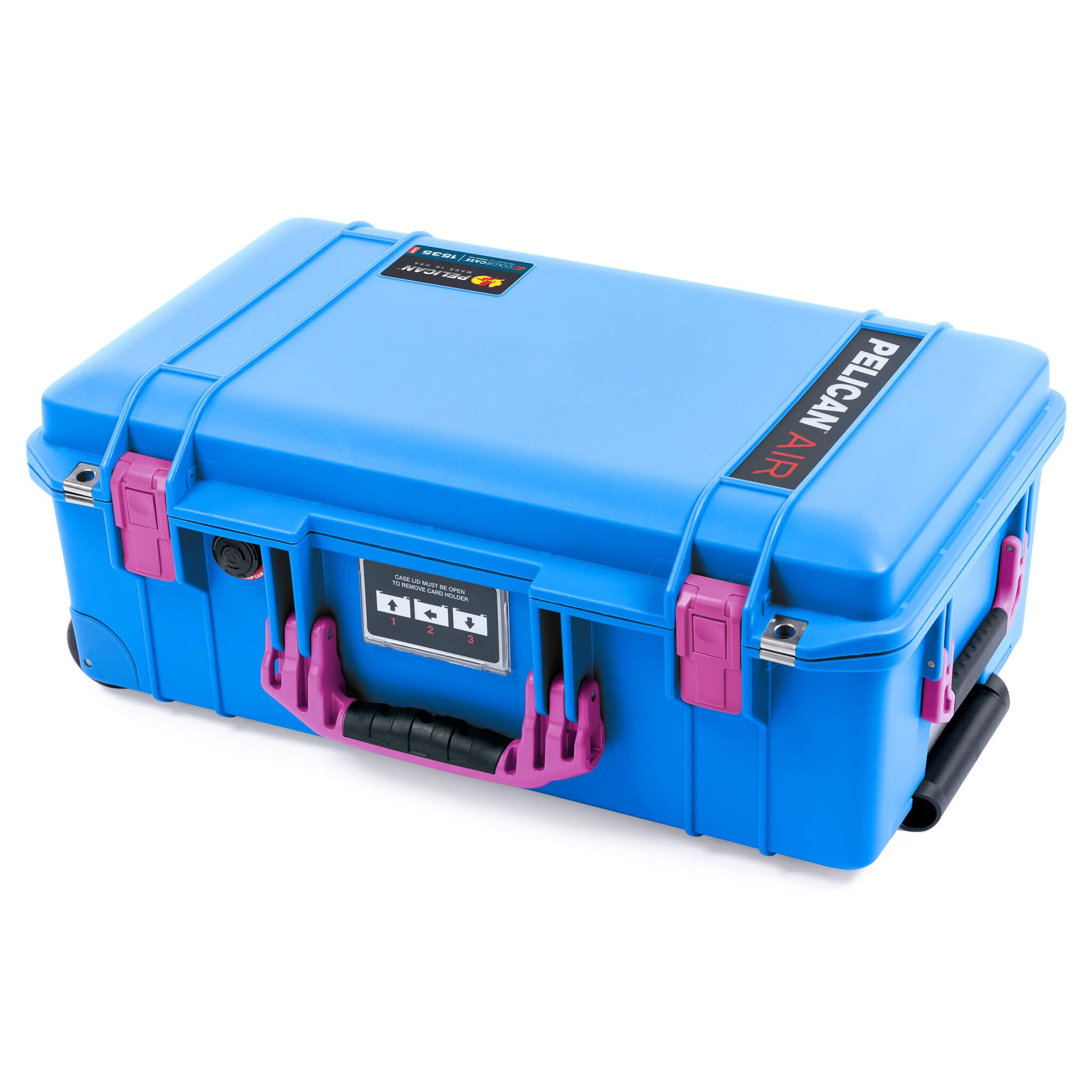

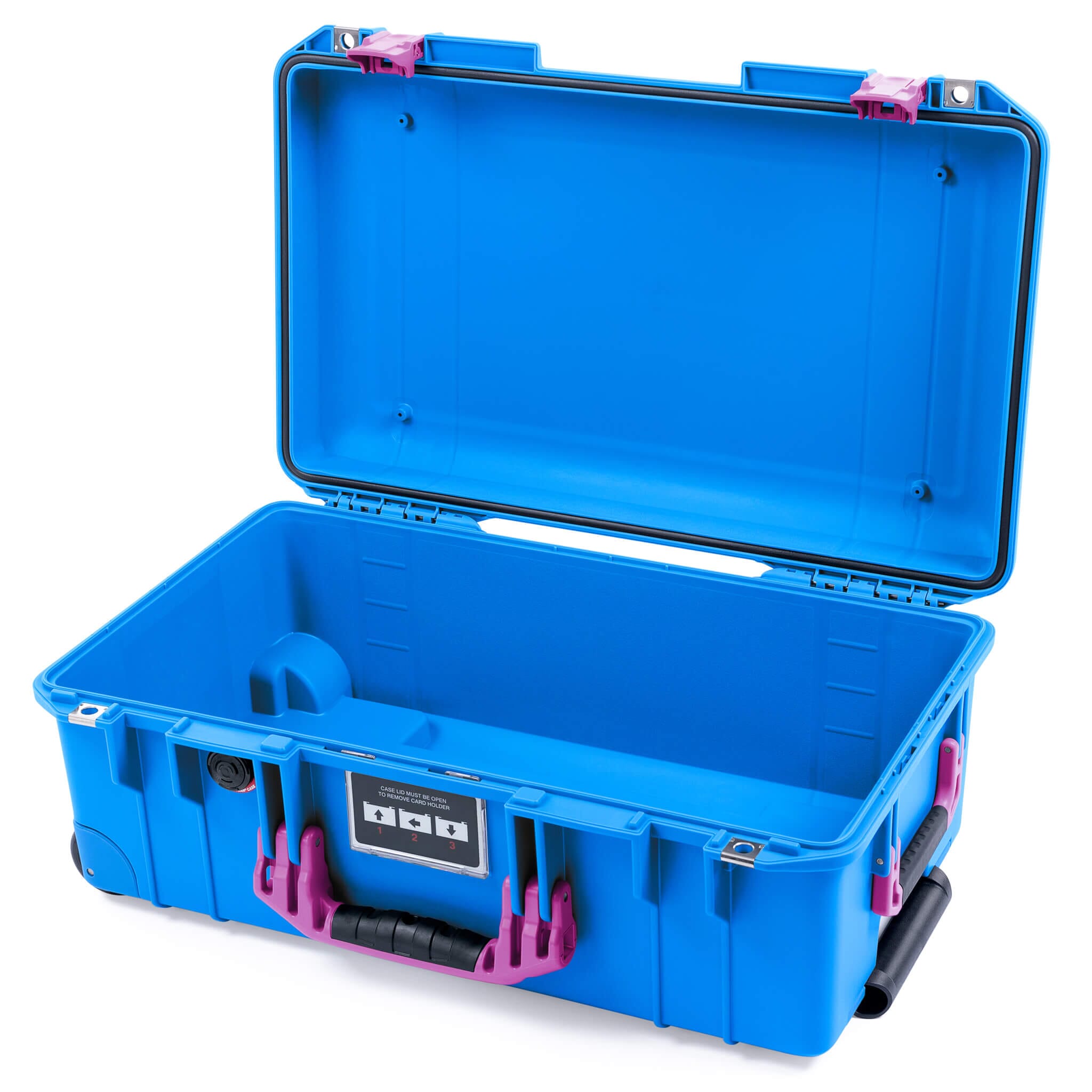

Pelican 1535 Air Case, Electric Blue with Magenta Handles & Latches

• Lid Depth: 2.00" (5.1 cm)
• Bottom Depth: 5.21" (13.2 cm)
• Total Depth: 7.21" (17.8 cm)
• Interior (L X W X D): 20.39" x 11.20" x 7.21" (51.8 x 28.4 x 17.8 cm)
• Exterior (L X W X D): 21.96" x 13.97" x 8.98" (55.8 x 35.5 x 22.8 cm)
• Weight (Empty): 8.69 lbs (3.9 kg)

• Internal Volume: 0.95 ft³
• Buoyancy: 64.80 lbs
• Case Material: Polypropylene
• Latch Material: ABS
• Pins Material: Stainless Steel
• Purge Body Material: ABS
• Purge Vent Material: 3 Micron Hydrophobic Non-Woven

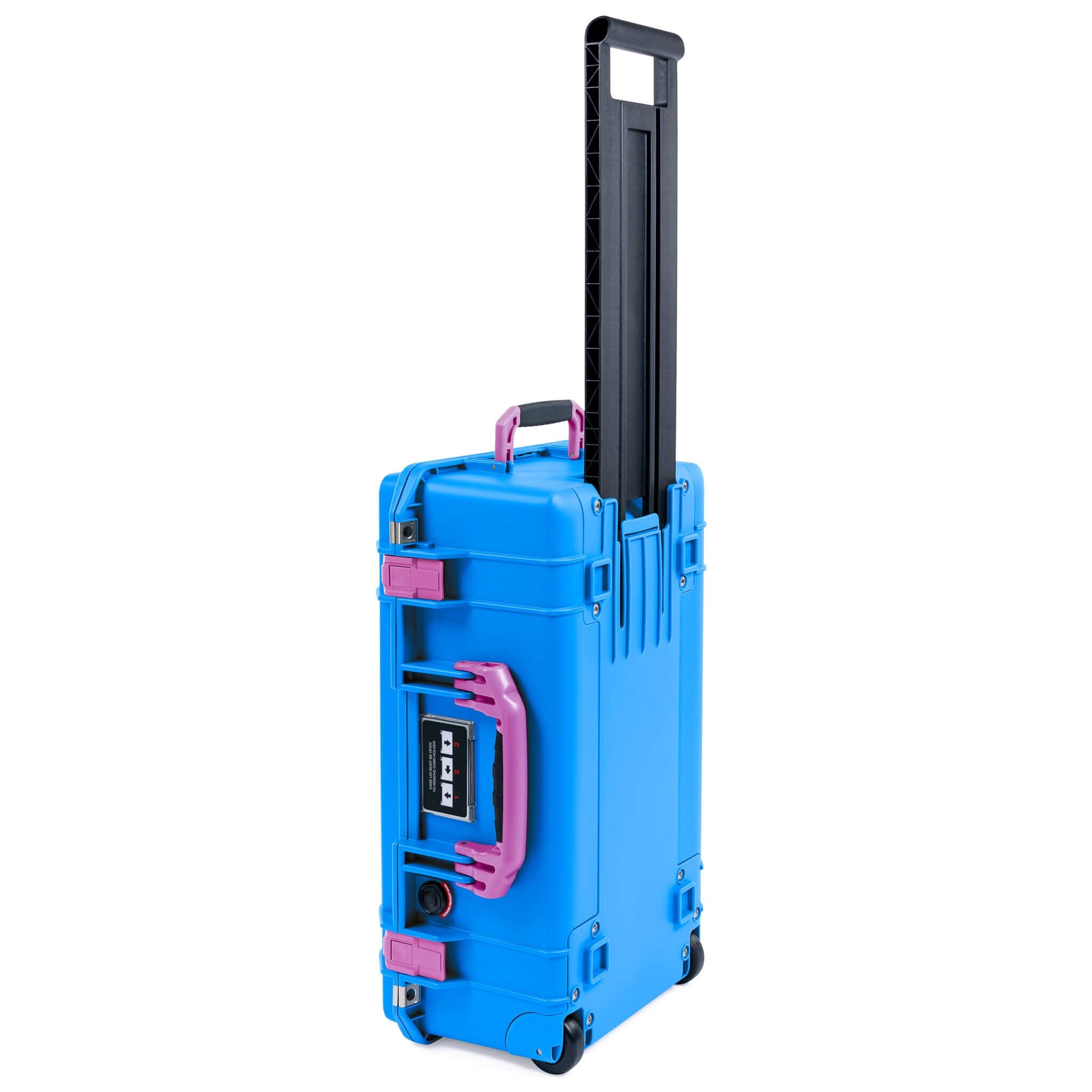

• Wheels Material: Polyurethane, Stainless Steel
• Extendable Handle Material: Polypropylene

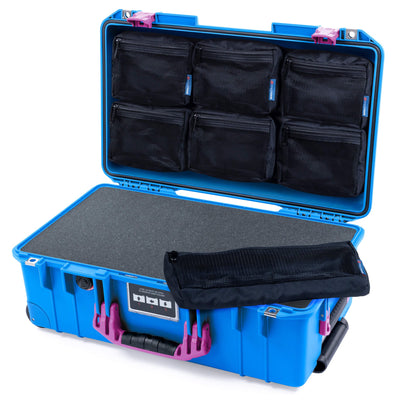

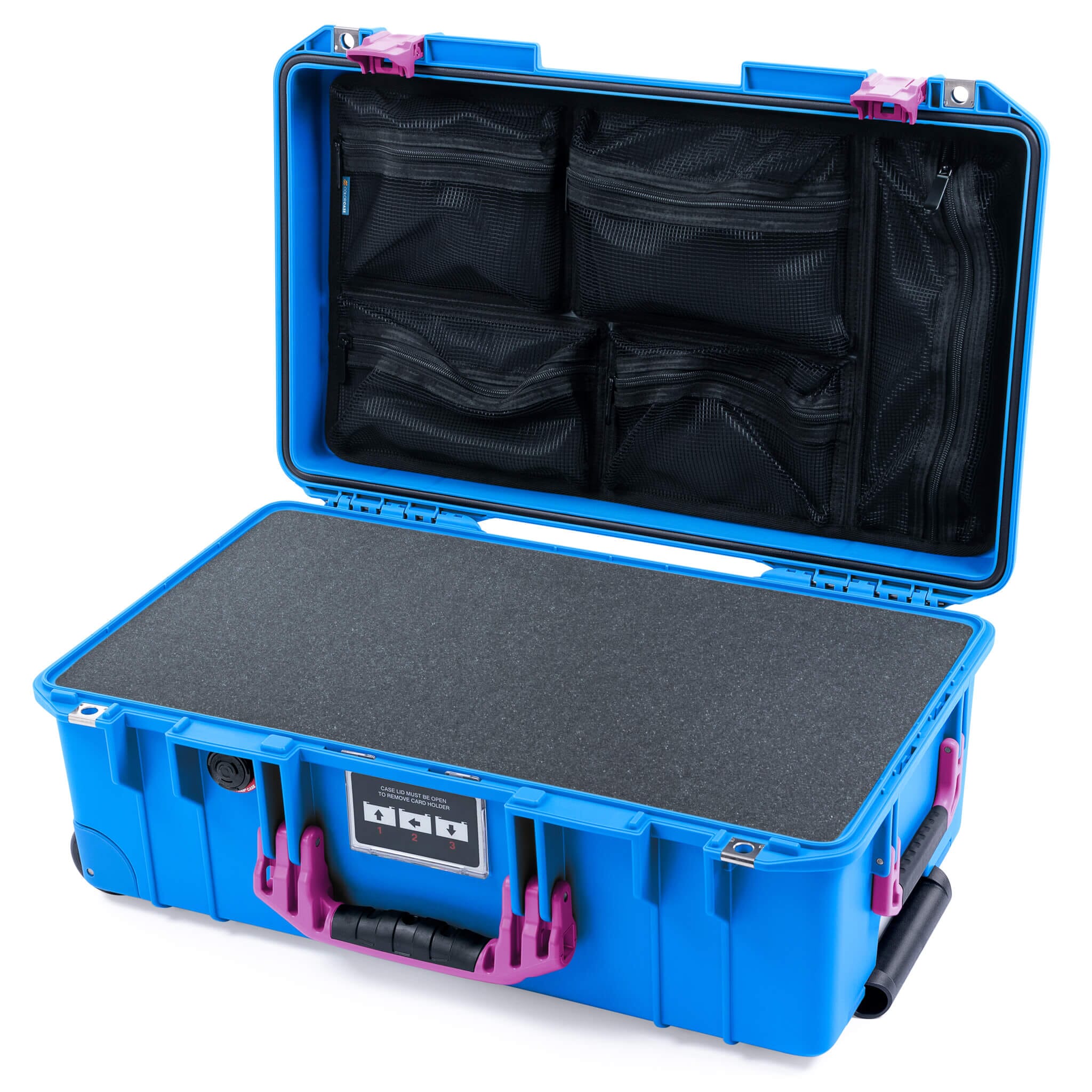

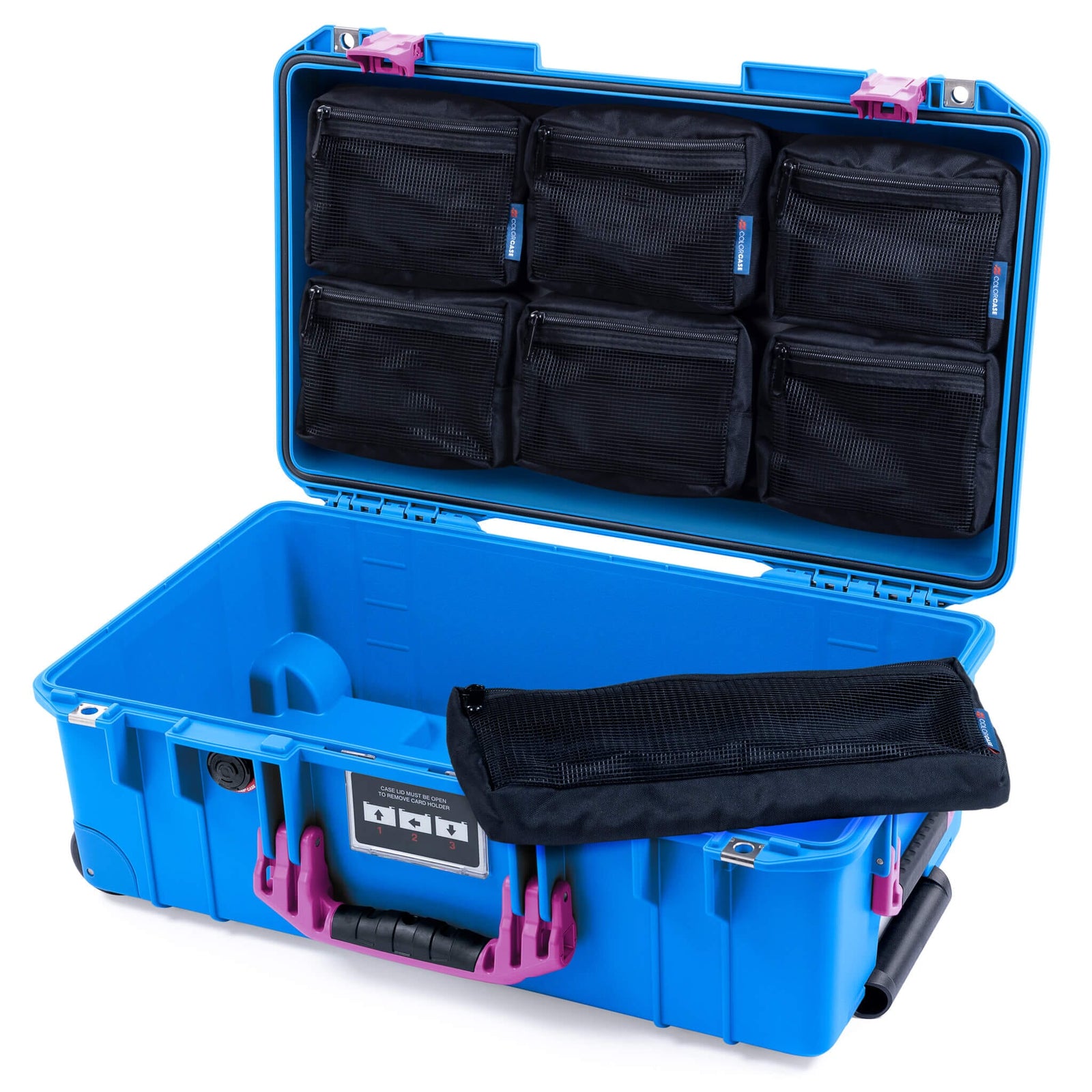

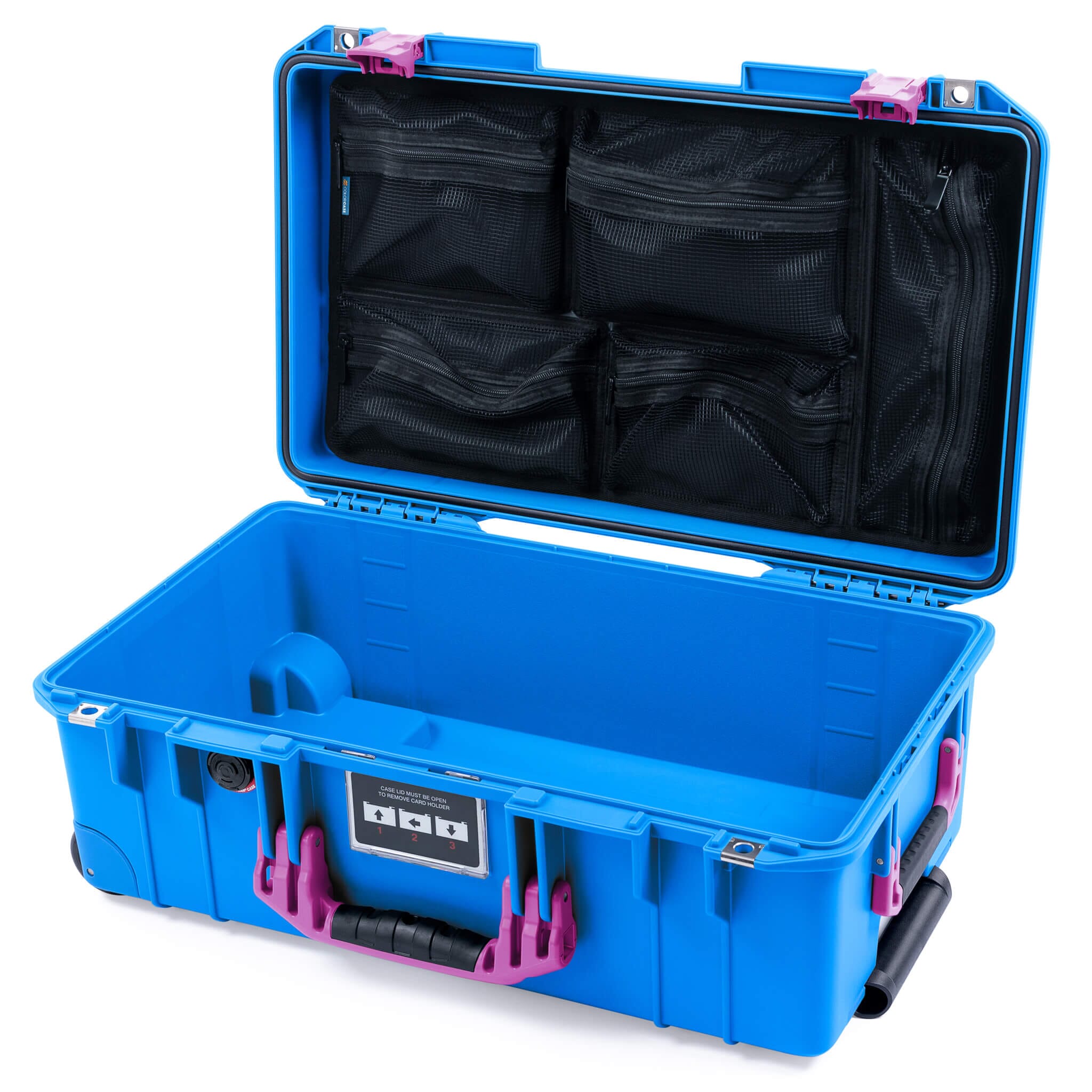

Mesh Lid Organizer

• Five mesh zipper pockets, plastic backing
• Installs with 6 included screws

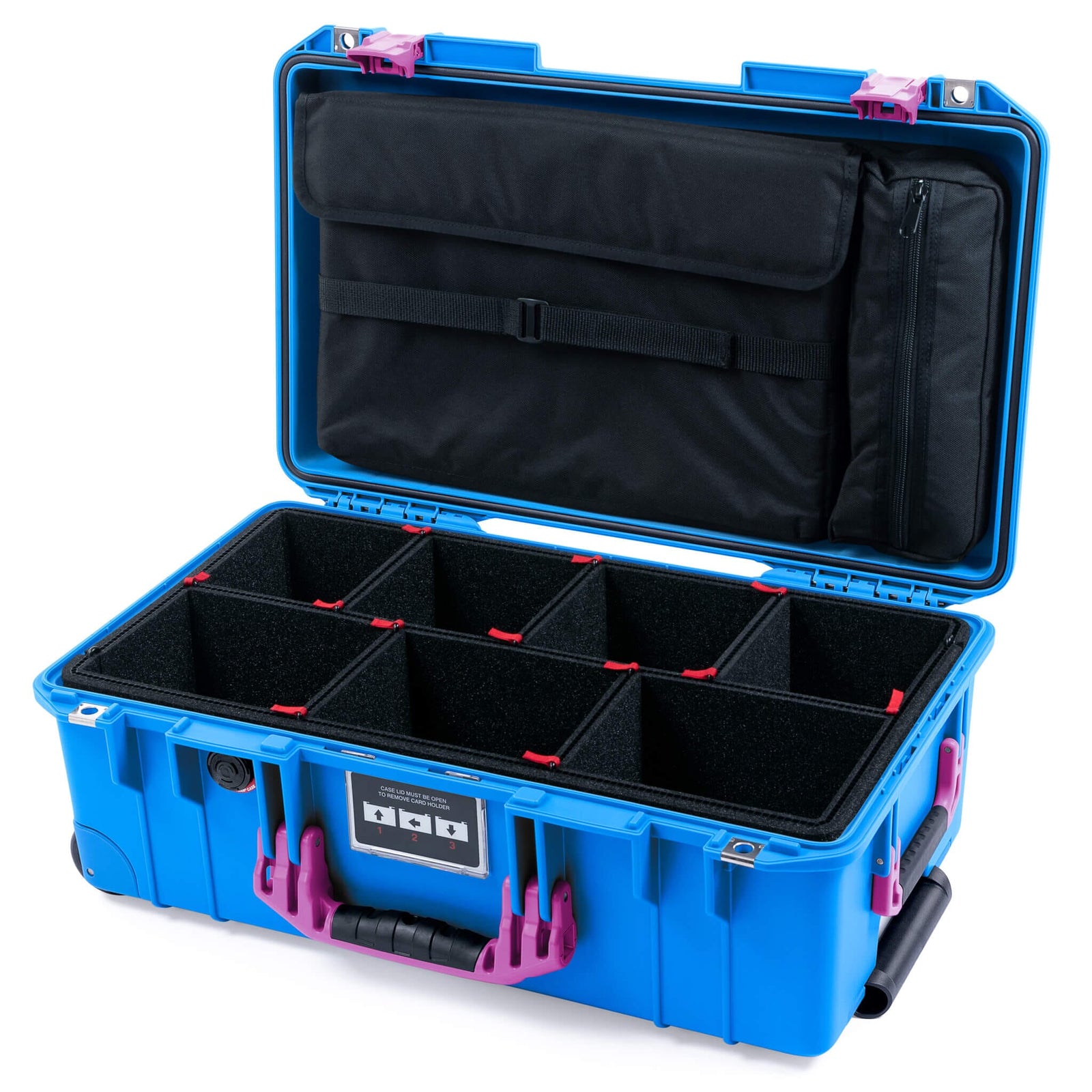

Computer Lid Pouch

• Fits laptop computers up to 15" x 11"
• Removable computer pouch with additional zipper pouch, plastic backing
• Installs with 6 included screws

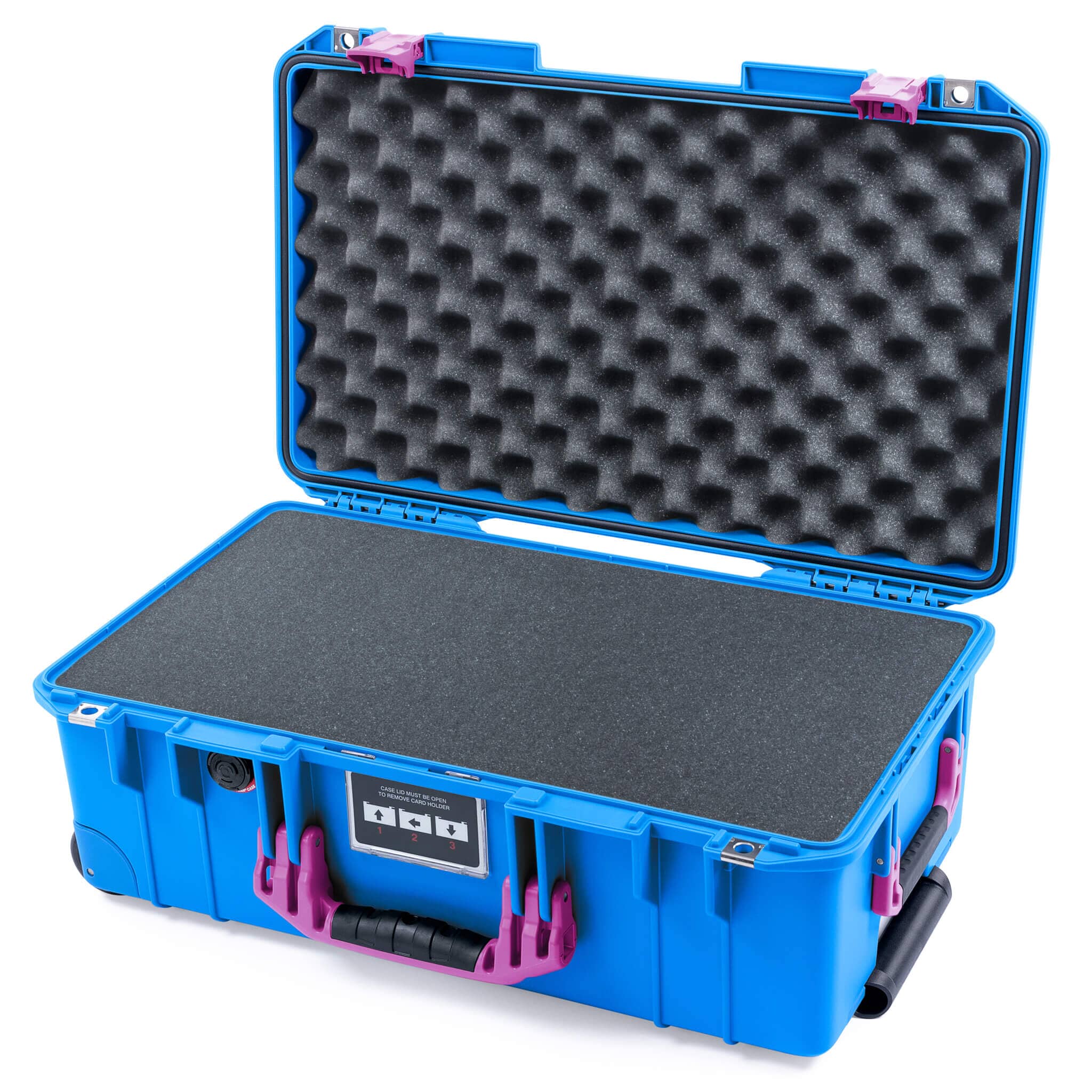

Pick & Pluck Foam

• Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

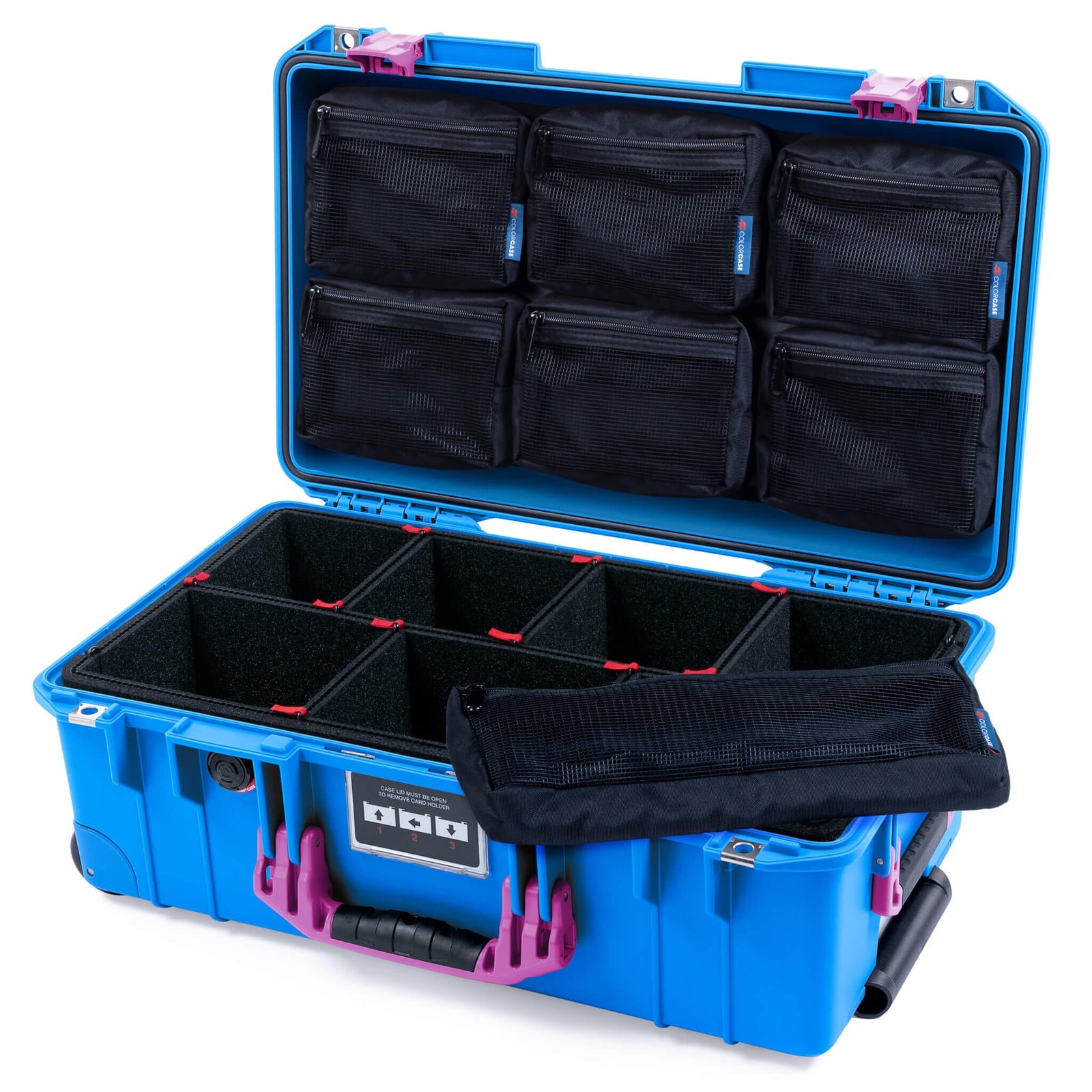

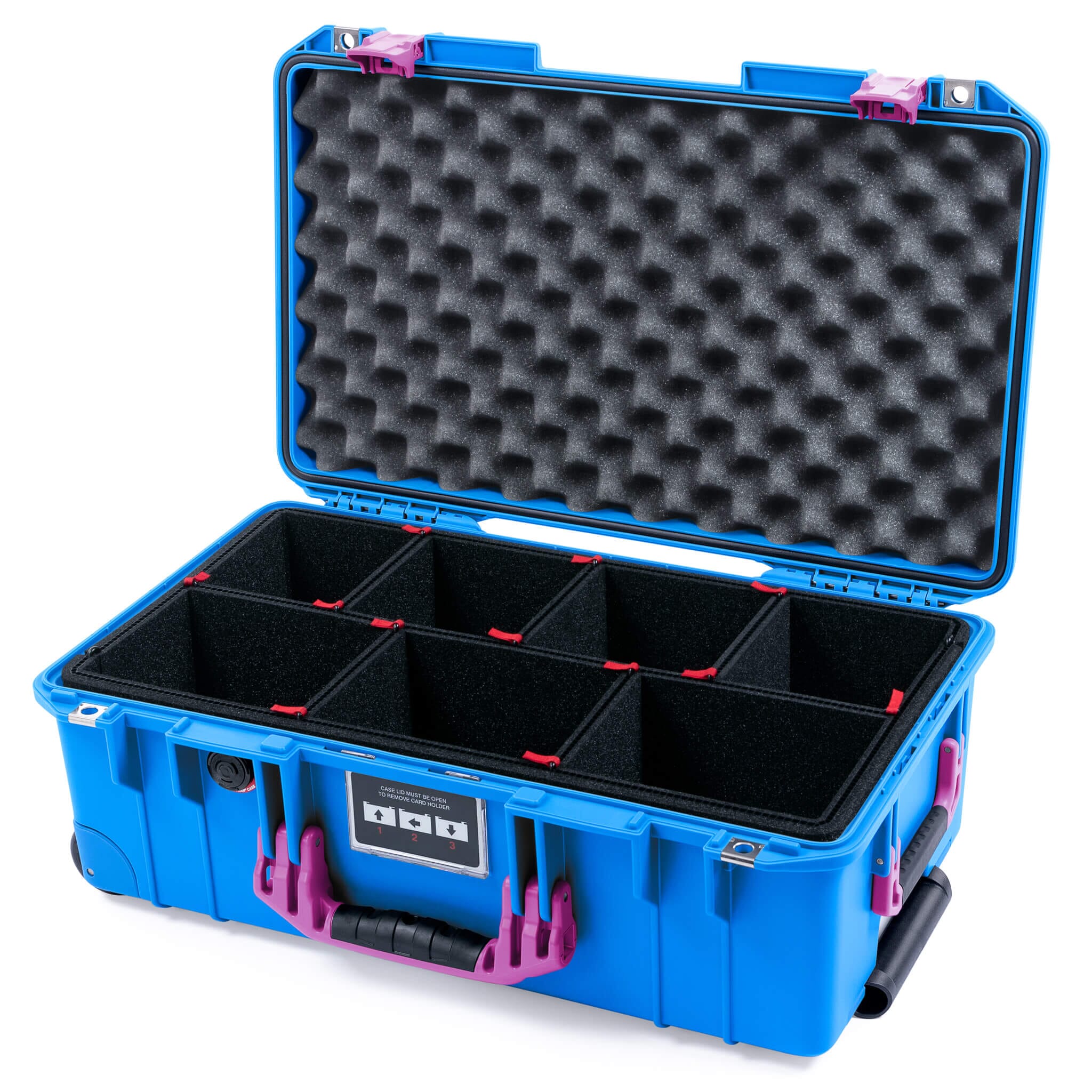

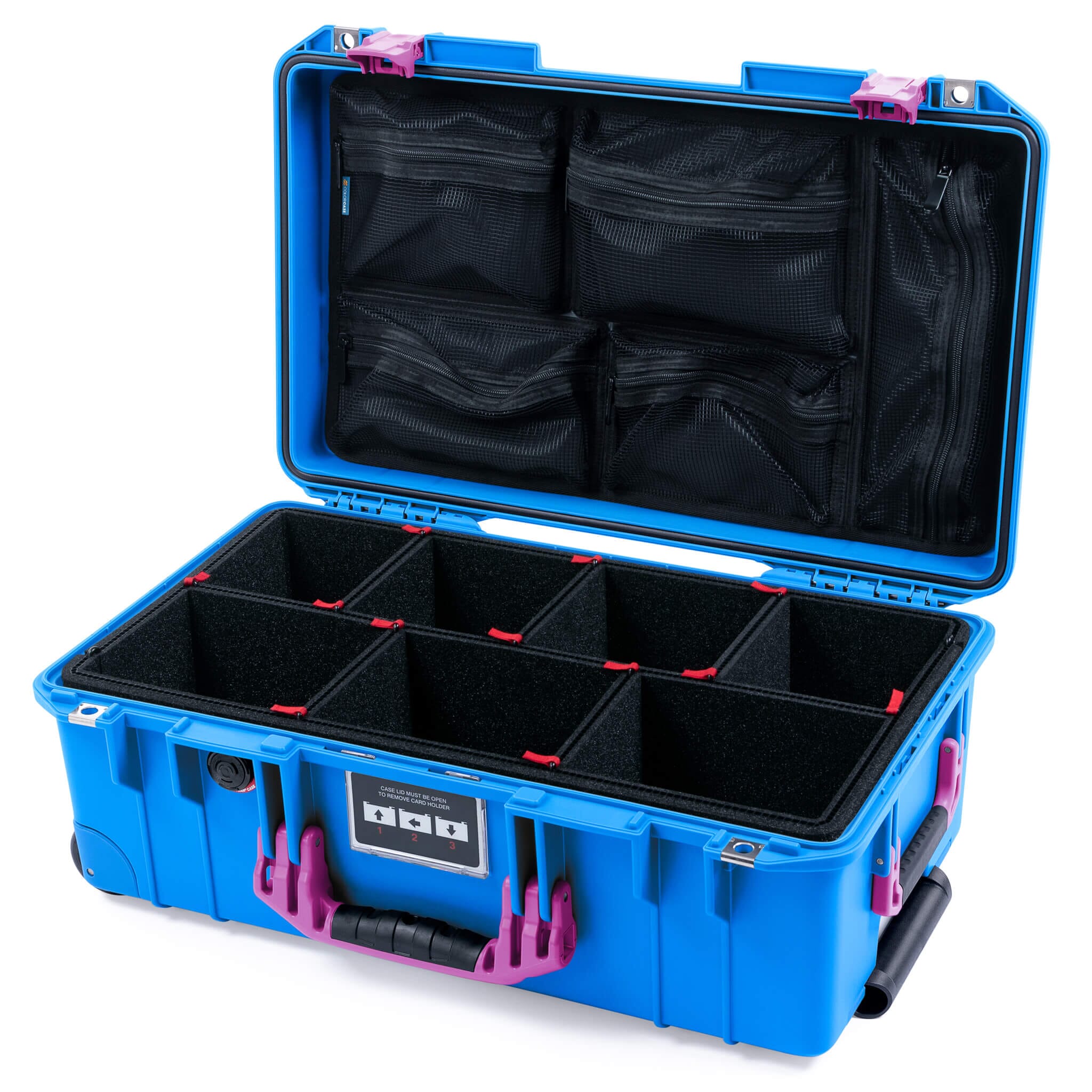

TrekPak Divider System

• Custom length perimeter insert for Pelican 1535 Air, two (2) divider inserts 20" in length, one (1) divider insert 15" in length; & one (1) divider insert 6" in length
• One cutter tool, 20 pins, & 20 red pull tabs
• Polyurethane bottom foam

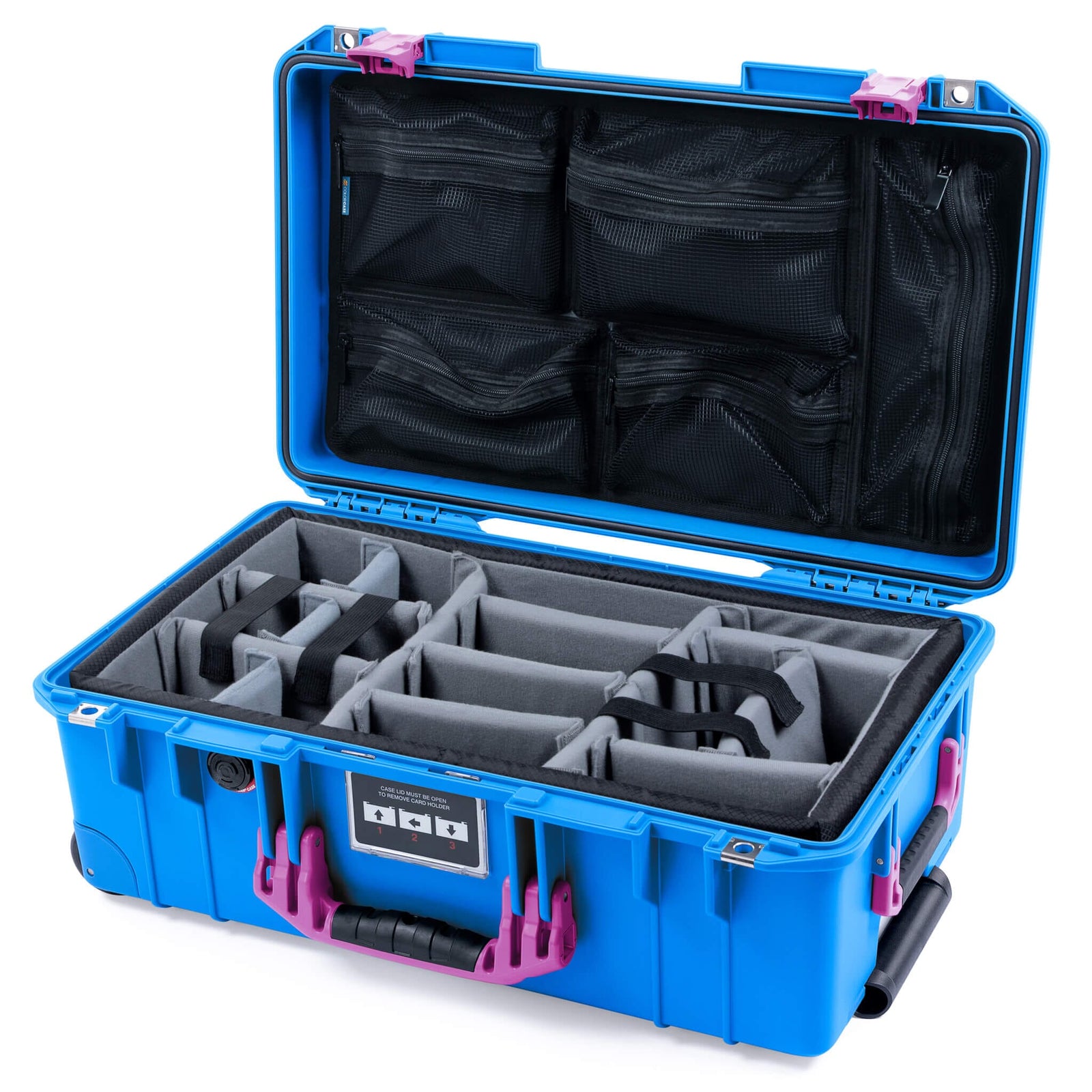

Gray Microfiber Padded Dividers

• 5" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
• Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
• Nine (9) 5.5" long, 3/4" thick microfiber dividers
• Three (3) 2.5" long, 3/4" thick microfiber dividers
• Four (4) 6" long, elastic Velcro straps

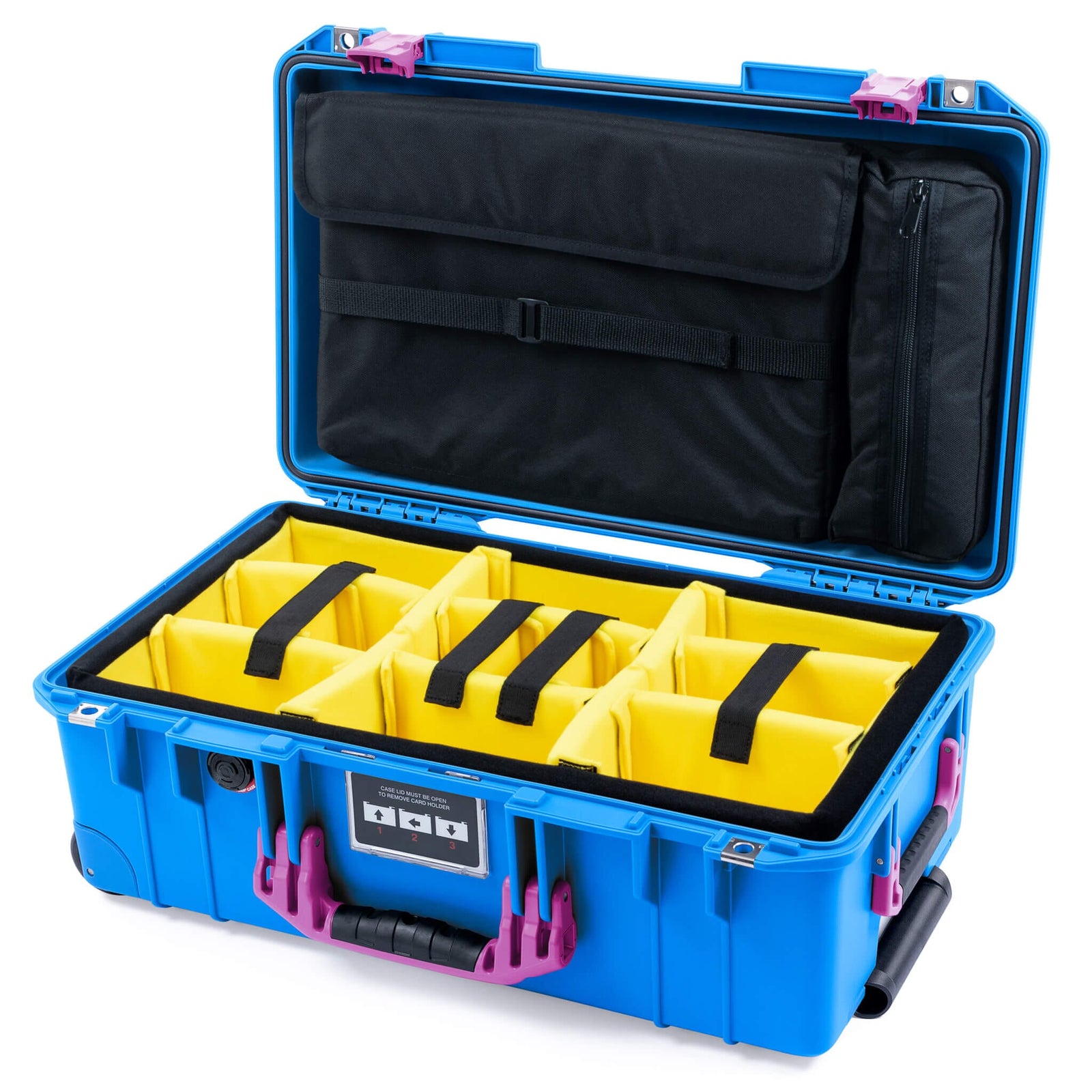

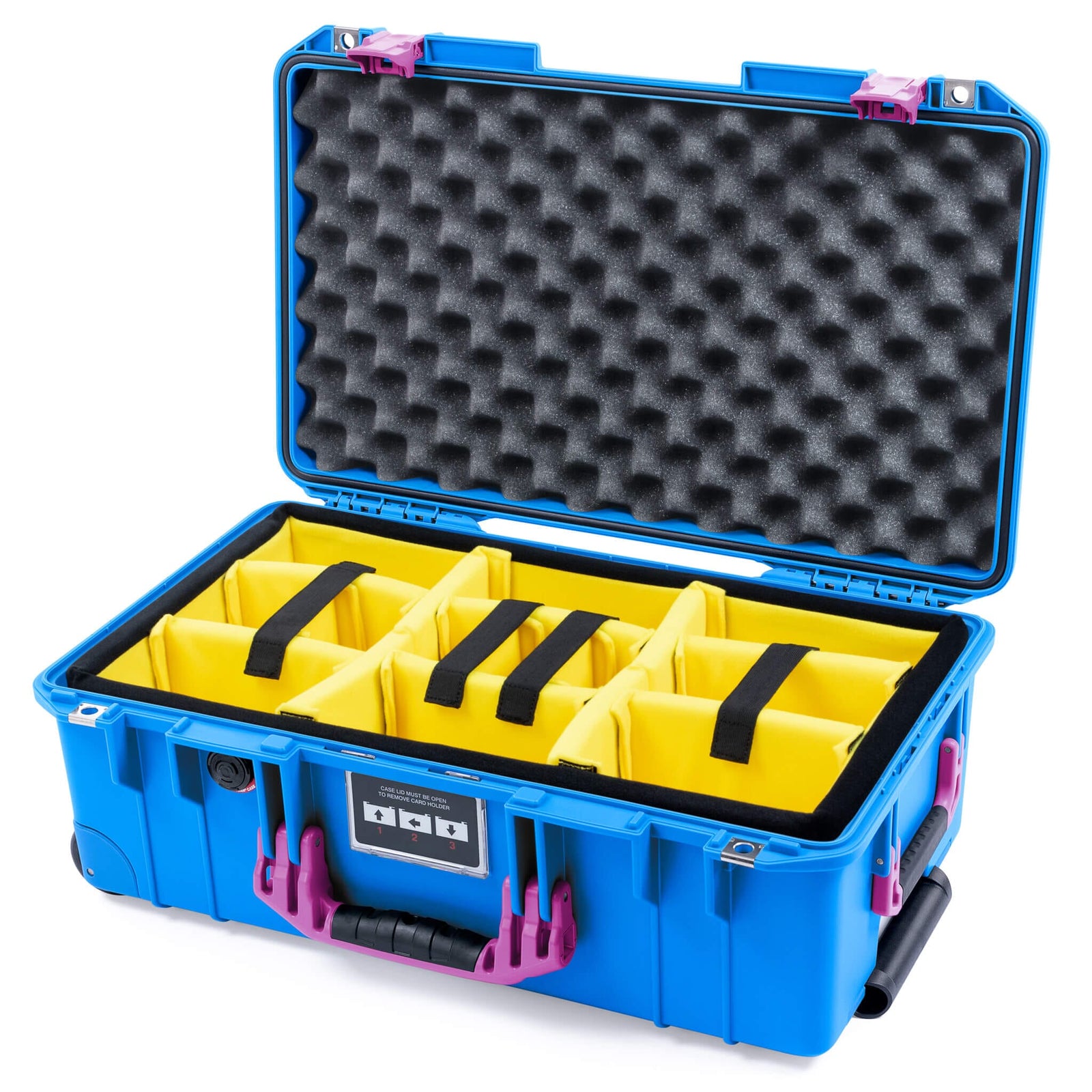

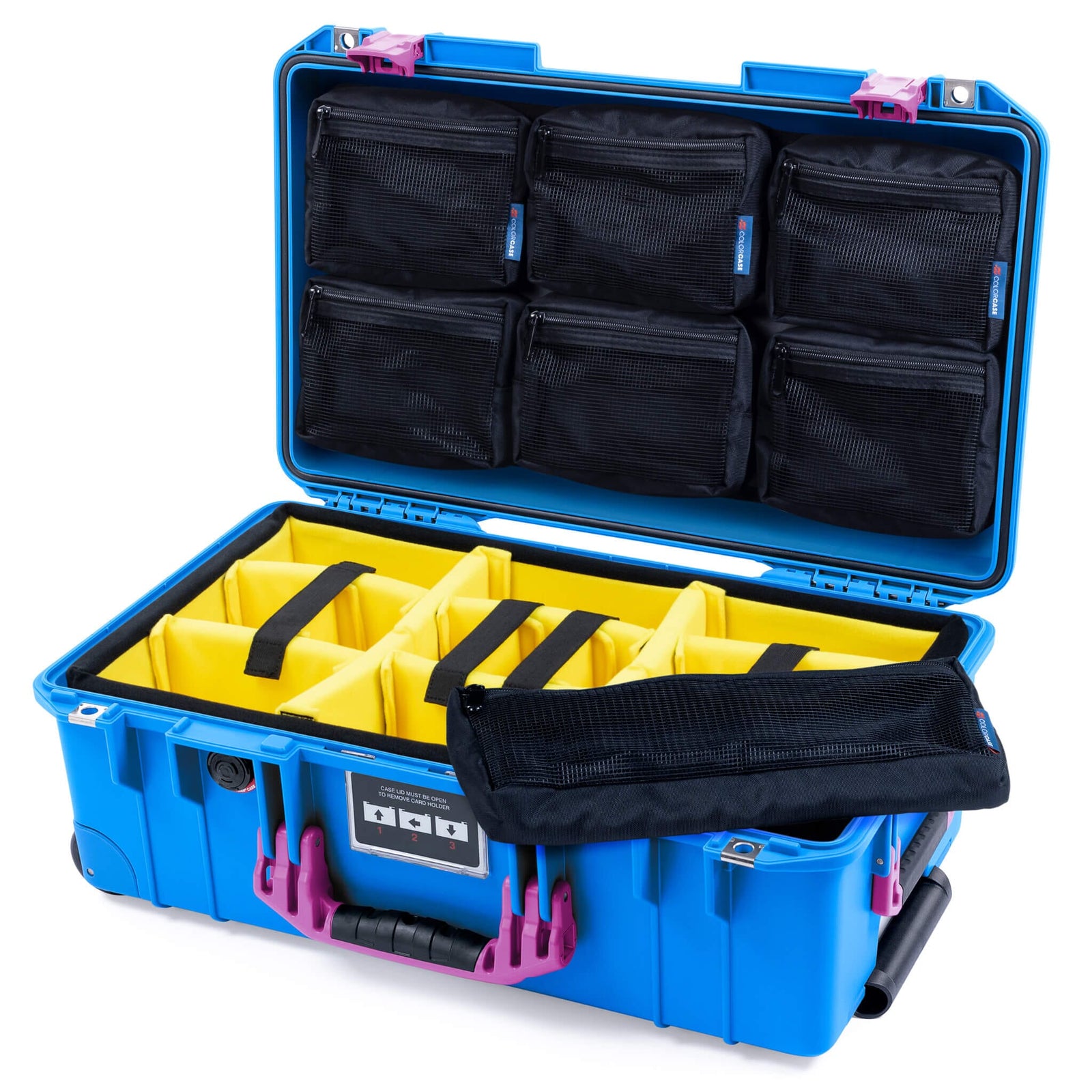

Yellow Microfiber Padded Dividers

• 5" deep black & yellow adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
• Two (2) 9.75" long, 3/4" thick hinged microfiber dividers
• Six (6) 5.75" long, 3/4" thick microfiber dividers
• Three (3) 2.75" long, 3/4" thick microfiber dividers
• Four (4) 6" long, elastic Velcro straps

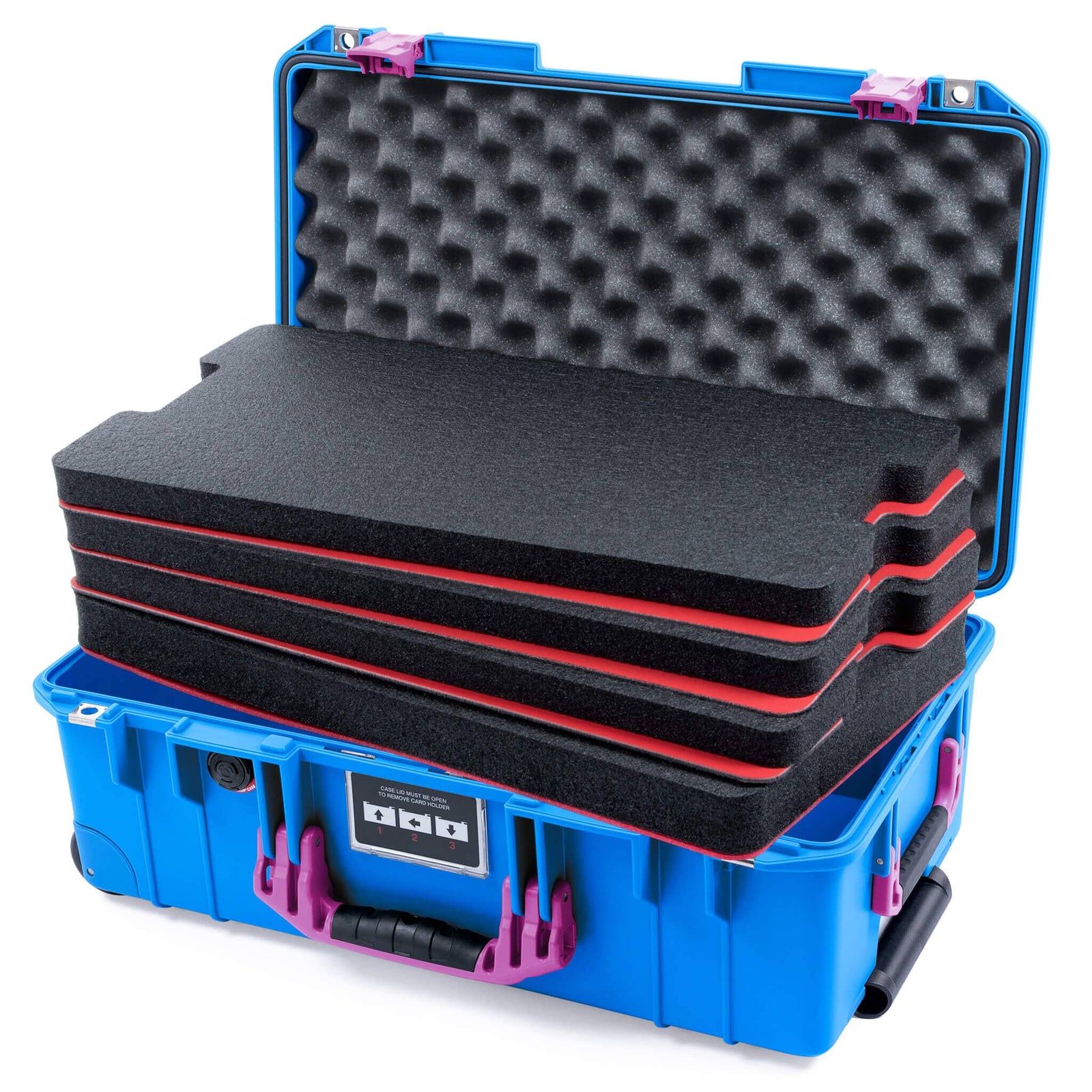

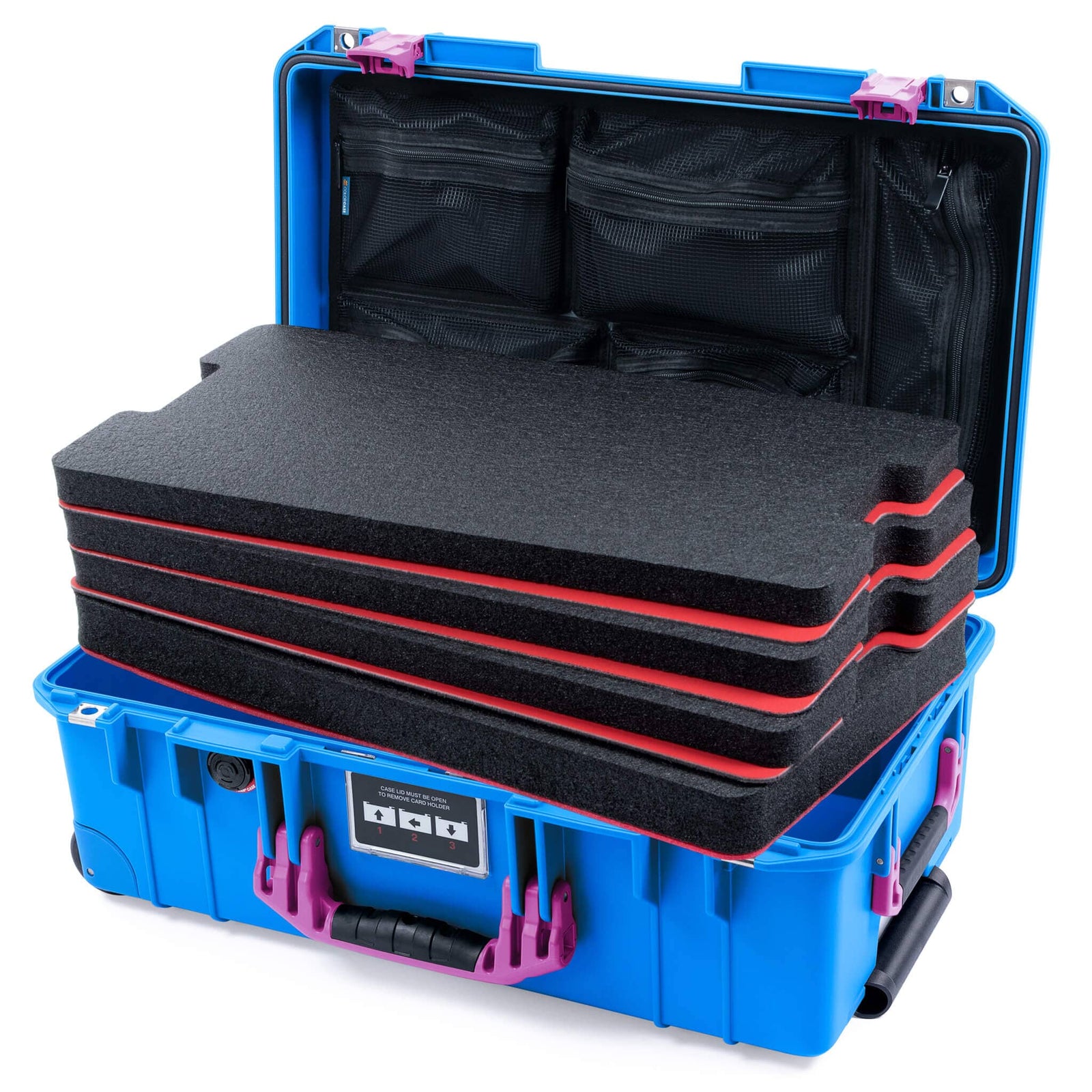

Custom Tool Control Kit

• Three (3) black 7/8" thick polyethylene foam inserts
• One (1) black 2" thick polyethylene bottom foam insert
• Three (3) red ABS plastic bottom backers (for removable trays) & one (1) red foam bottom backer (for bottom tray)
• DIY Assembly: Trace your tools, carefully cut black foam with to create tool pockets, peel adhesive backing from foam, and affix foam to red ABS plastic for shadowboard effect
• Includes polyurethane convolute lid foam

Download CAD Drawings*

• Pelican 1535 Air Dimensional Drawing

*CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
