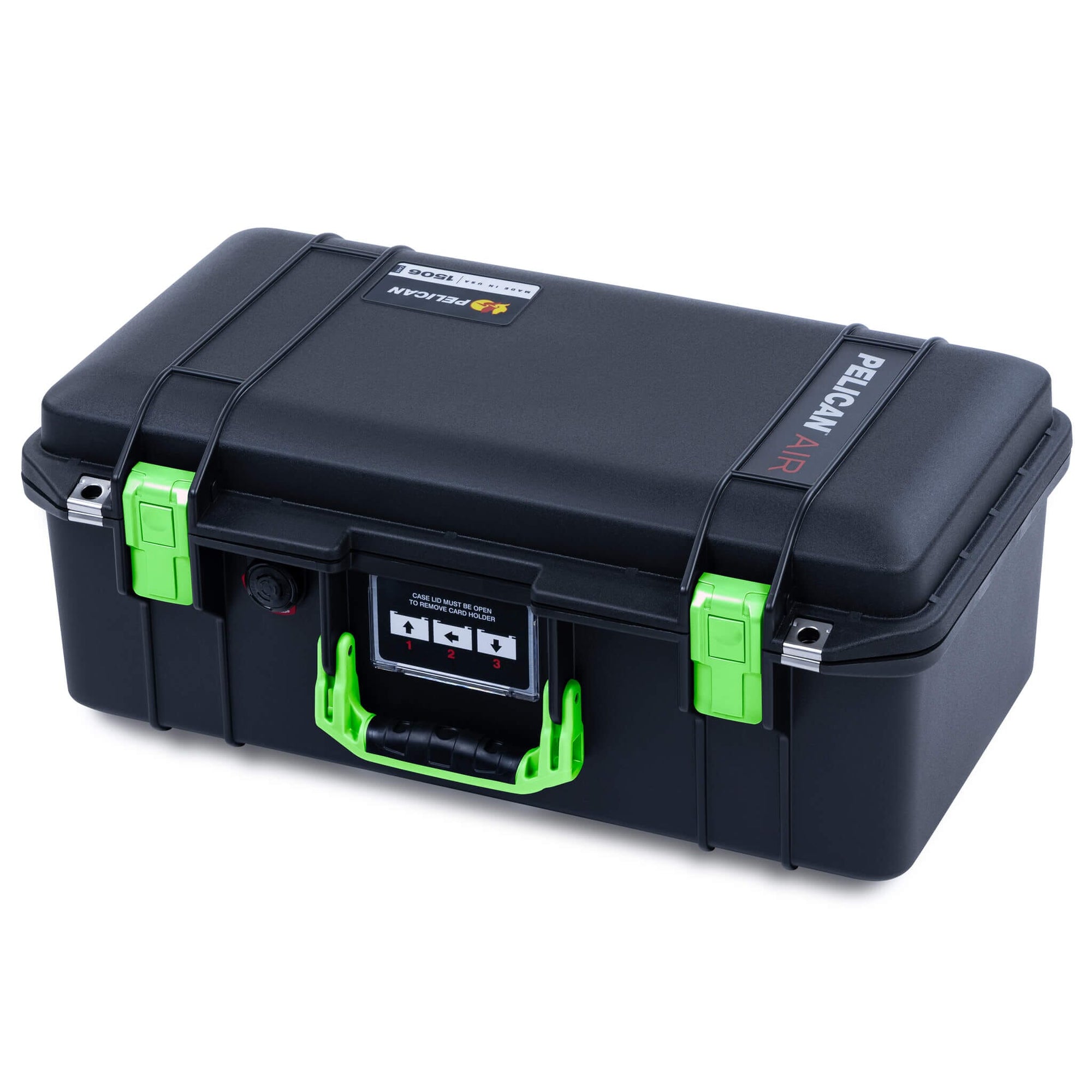

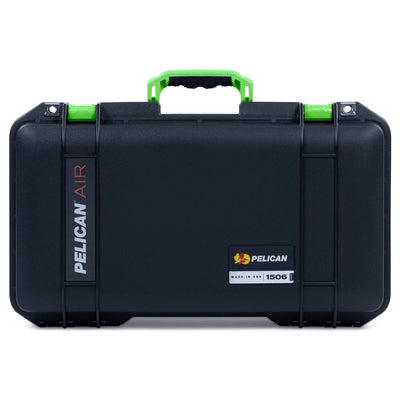

Pelican 1506 Air Case, Black with Lime Green Handles & Latches

• Lid Depth: 2.00" (5.1 cm)
• Bottom Depth: 5.80" (14.7 cm)
• Total Depth: 7.80" (19.8 cm)
• Interior (L X W X D): 18.70" x 9.40" x 7.80" (47.5 x 23.9 x 19.8 cm)
• Exterior (L X W X D): 20.12" x 12.02" x 8.56" (51.1 x 30.5 x 21.7 cm)
• Weight (Empty): 5.35 lbs (2.4 kg)

• Internal Volume: 0.79 ft³
• Buoyancy: 51.69 lbs
• Case Material: Polypropylene
• Latch Material: ABS
• Pins Material: Stainless Steel
• Purge Body Material: ABS
• Purge Vent Material: 3 Micron Hydrophobic Non-Woven

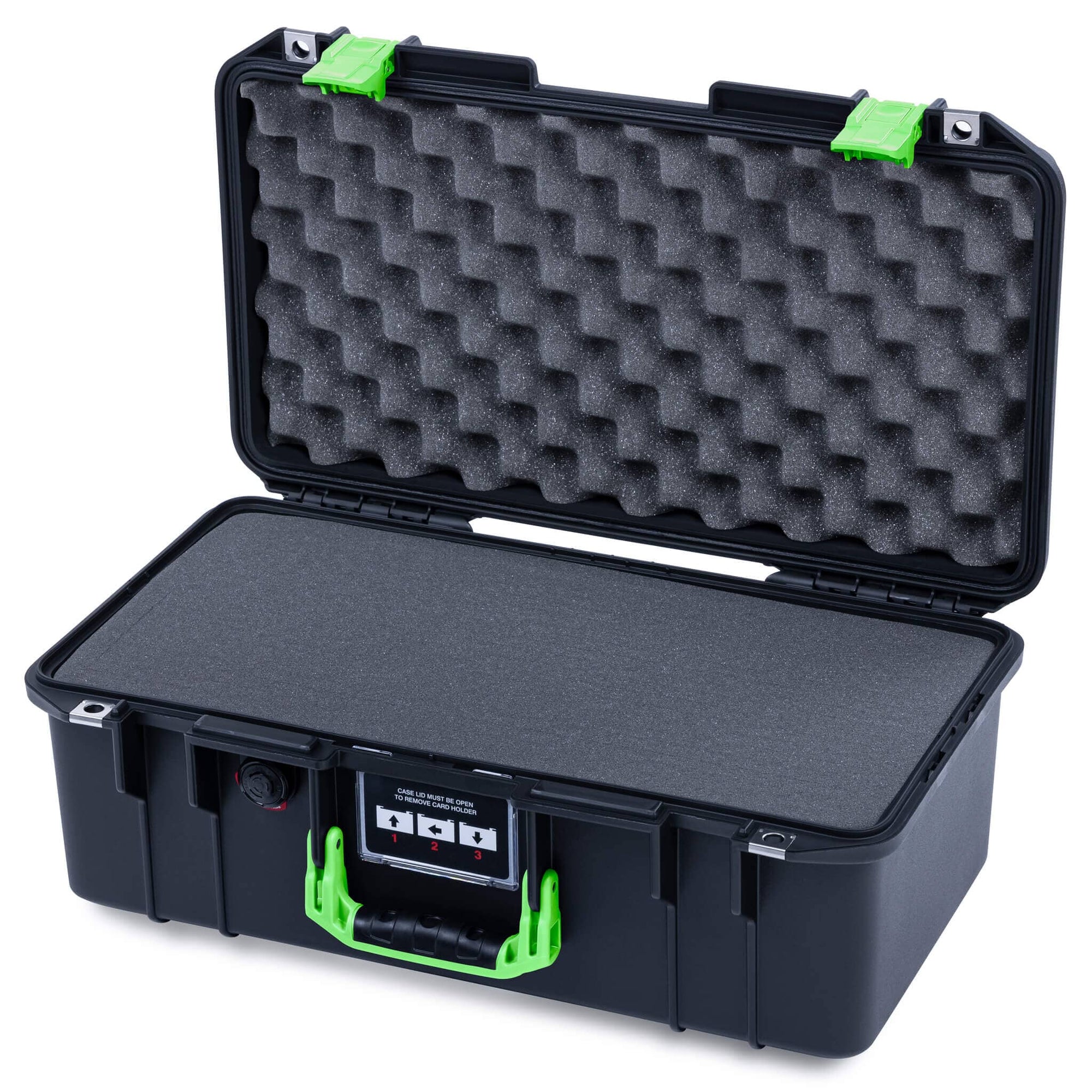

Pick & Pluck Foam

• Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

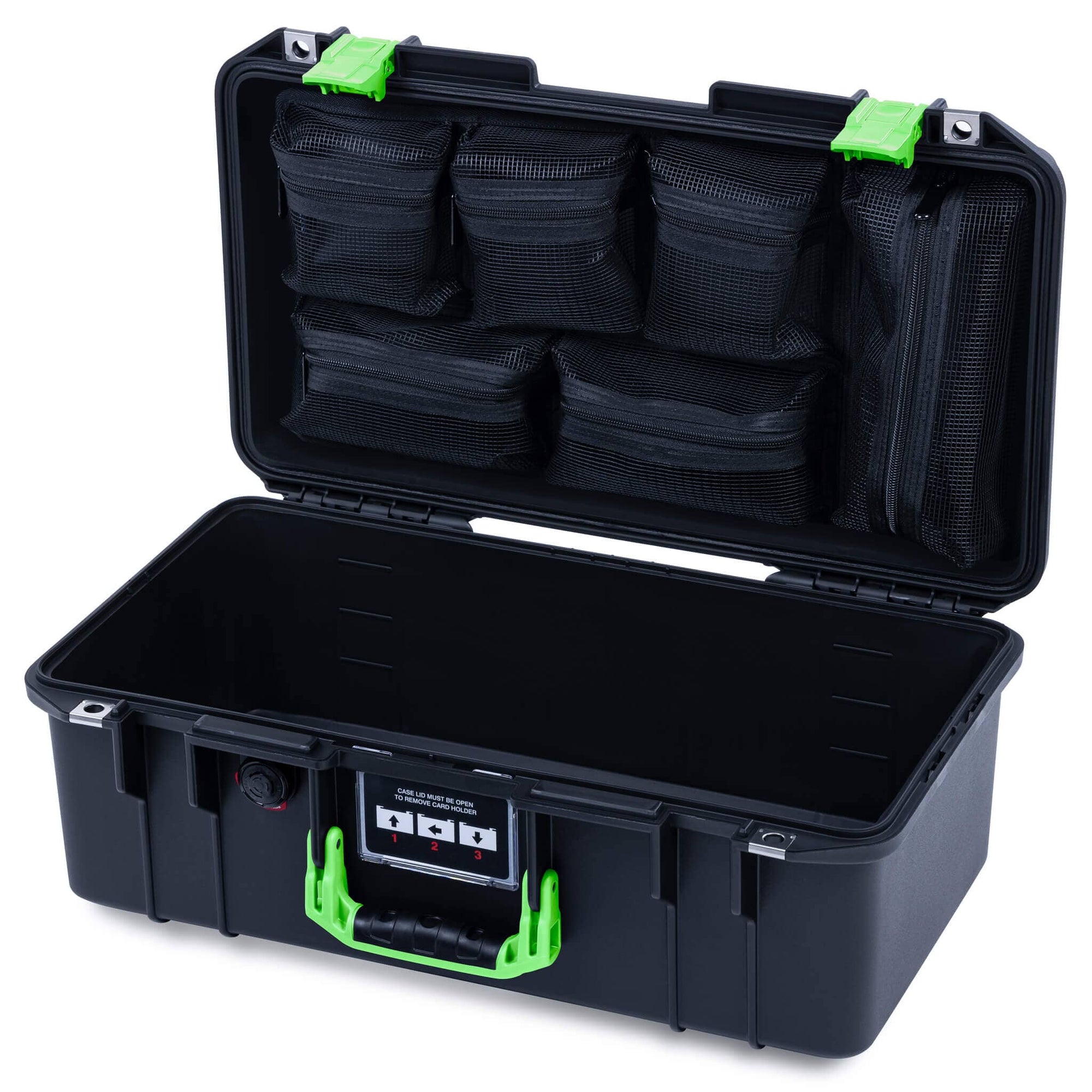

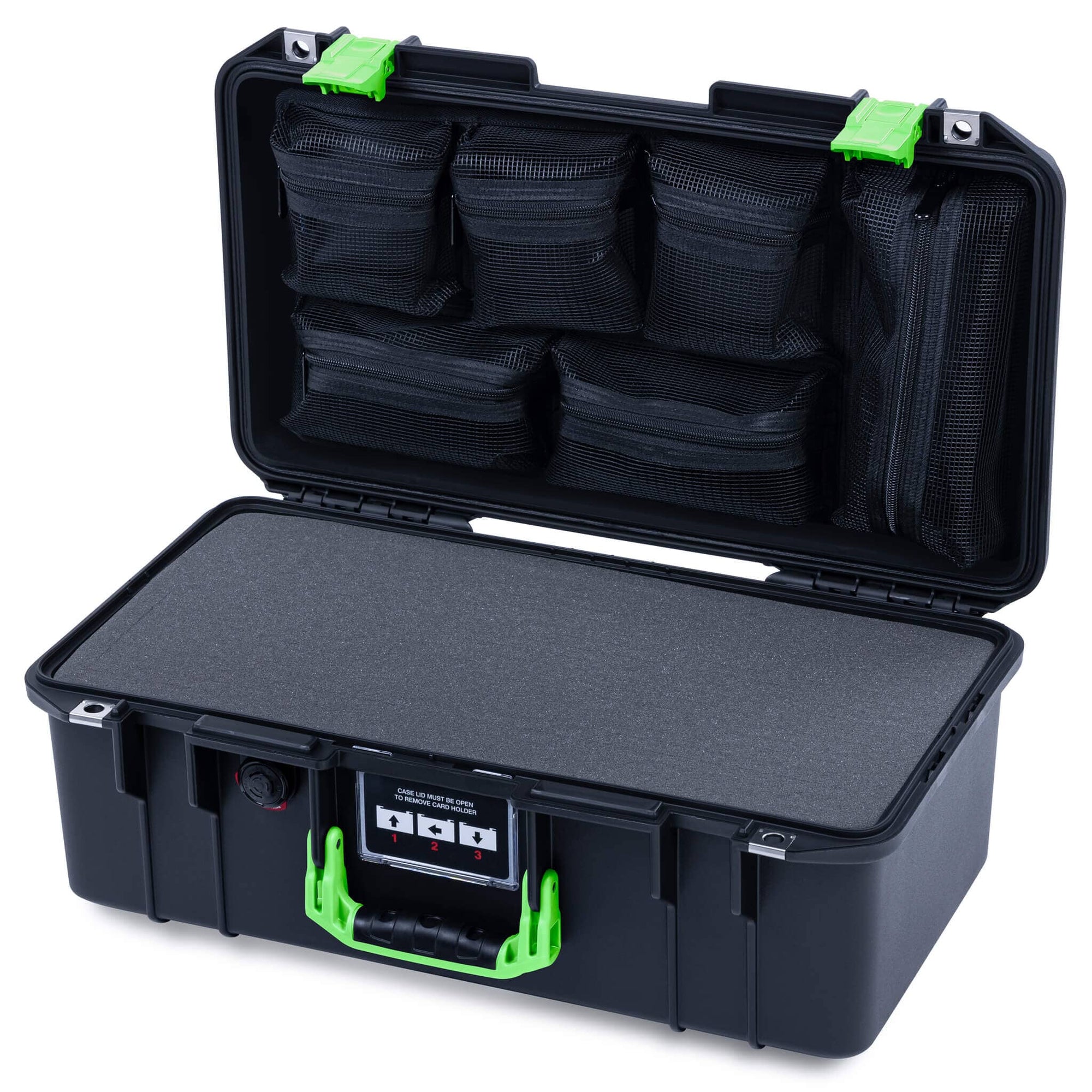

ColorCase Mesh Lid Organizer

• Six mesh zipper pockets, plastic backing
• Installs with 4 indcluded screws

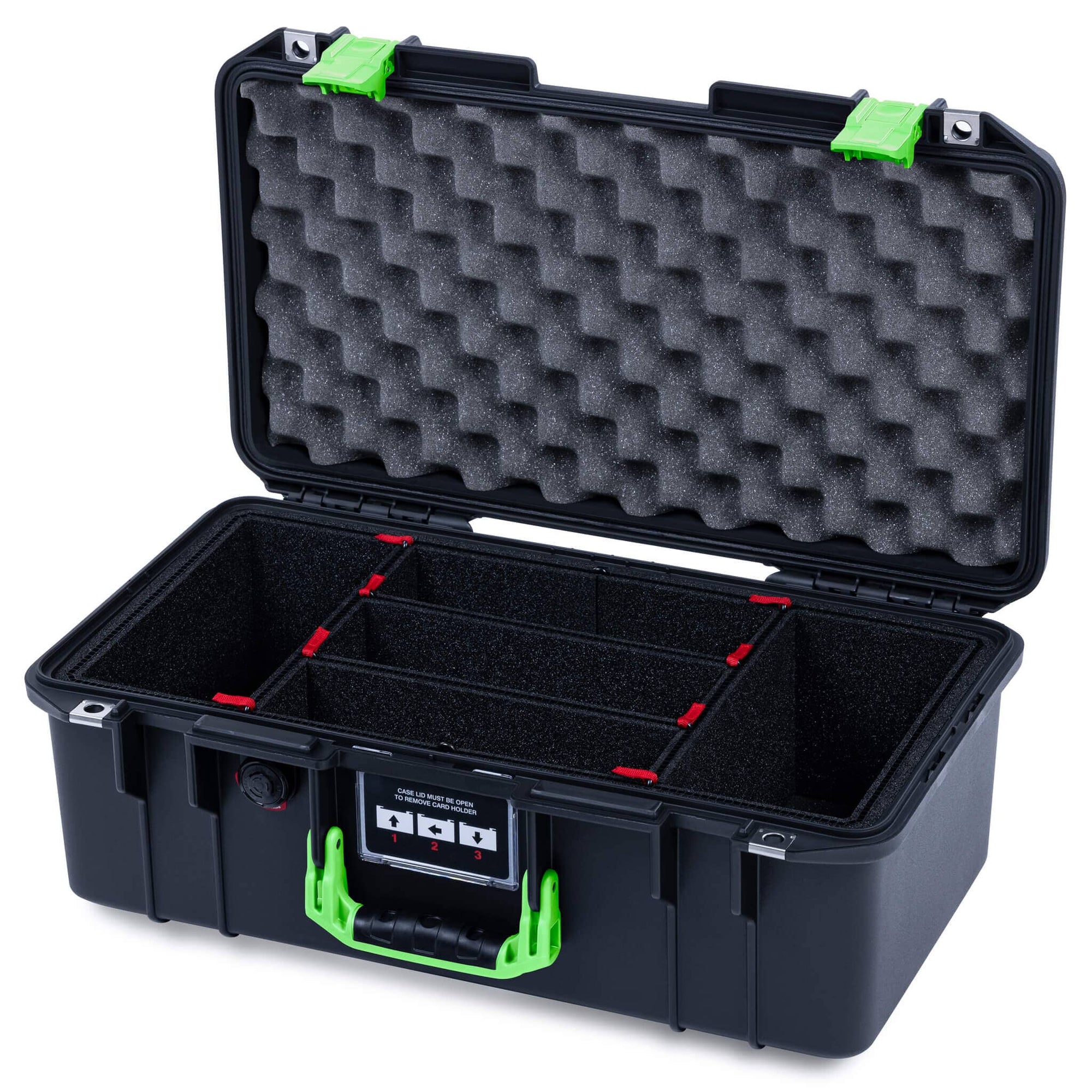

TrekPak Divider System

• Custom length perimeter insert for Pelican 1506 Air, two (2) divider inserts 9" in length, & two (2) divider inserts 8.5" in length
• One cutter tool, 10 pins, & 10 red pull tabs
• Polyurethane bottom foam

Download CAD Drawings*

• Pelican 1506 Air Dimensional Drawing

*CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
